Place of Origin: | China |
Brand Name: | FZ |
Certification: | CE |
Model Number: | DNW-16Q |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Plastic films or can be customized. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Type: | Commercial Goods Decking Wire Mesh Welding Machine | Material Of Machine: | Heavy Plates And Section Bars |
---|---|---|---|
Wire Diameter Range: | 6+6mm | Max. Mesh Width: | 1600mm |
Mesh Hole Size: | 50*25mm | Welding Speed: | 40-60 Times/min |
Usage: | Goods Decking | Welding Method: | Pneumatic |
Producton Capacity: | 25 Sets/Month | Weight: | 17 Tons |
Voltage: | Can Be Customized | Control System: | PLC Control |
Cooling Method: | Water Cooling | Warranty: | 1 Year |
Highlight: | 12mm mesh welding machine,commercial goods decking mesh welding machine,12mm wire mesh welding machine |

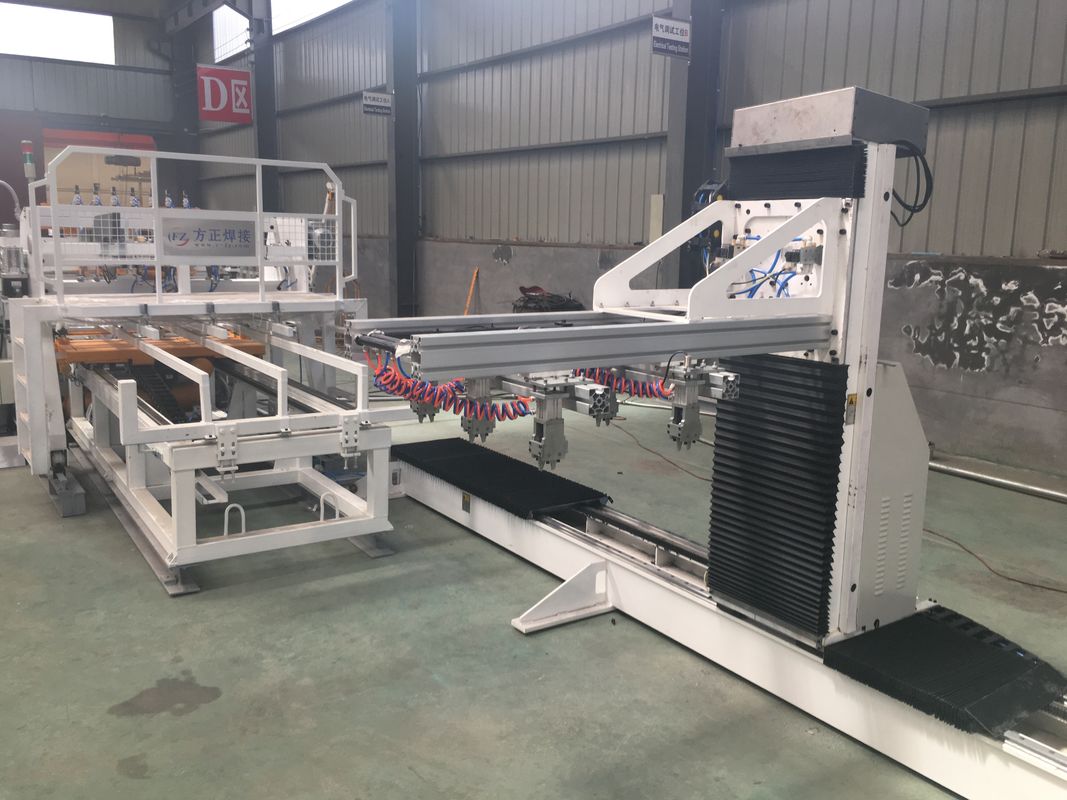

Commercial Goods Decking Wire Mesh Welding Machine
Welding transformers are arranged in order from the host operating console.The secondary conductors of the transformer are connected to each set of electrode seats through multiple layers of copper skin.Welding transformer is iron shell type and its primary winding is disc type.During welding, the adjustment series is selected according to the nature, diameter and contact surface to obtain the required series current.Usually, the larger the diameter, the better the surface conductivity, and the greater the electrode pressure, the welding current should increase accordingly.Welding time can be adjusted from 0.01 to 1 second according to the welding diameter.Usually, the larger the welding diameter, the welding time required and the welding current will also increase.
Item | Name | QTY | Unit |
1 | Welding machine | 1 | SET |
2 | Welding Control System | 1 | SET |
3 | Servo Control System | 1 | SET |
4 | Servo stepping device | 1 | SET |
5 | Cross Wire Auto-Feeding System | 1 | SET |
6 | Long wire loading frame | 1 | SET |
7 | Mesh traction platform | 1 | SET |
8 | Long wire feeding car device | 1 | SET |
9 | Automatically stacking device | 1 | SET |
10 | Mesh transportation car | 1 | SET |
11 | spare part case | 1 | PCS |
12 | Equipment operation and maintenance manual | 1 | COPY |
Commercial Goods Decking Wire Mesh Welding Machine
If the machine is not in use for a long period of time, the main power supply should be cut off to ensure safety, cut off the supply of air and water, do anti-rust treatment on the machine, apply anti-rust oil, remove dirt on the upper and lower electrode blocks, keep it clean, apply proper amount of lubricating oil on the mechanical transmission parts such as gears, sprockets, etc., blow off the dust of the fuselage and cover it with plastic film.
Gas supply equipment or water pump should also do corresponding maintenance.
Keep the machine storage place clean, non-corrosive liquid, water, no dangerous goods storage.
