Place of Origin: | China |
Brand Name: | FZ |
Certification: | CE |
Model Number: | DNW-16Q |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Plastic films or can be customized. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Type: | Numerical Control Commodity Shelf Wire Mesh Welding Machine | Material Of Machine: | Heavy Plates And Section Bars |
---|---|---|---|
Wire Diameter Range: | 6+6mm | Max. Mesh Width: | 600-1600mm |
Mesh Hole Size: | 50*20mm | Welding Speed: | 40-60 Times/min |
Usage: | Commodity Shelf | Welding Method: | Pneumatic |
Producton Capacity: | 20 Sets/Month | Weight: | 20 Tons |
Voltage: | Can Be Customized | Control System: | PLC Control |
Cooling Method: | Water Cooling | Warranty: | 1 Year |
Highlight: | commodity shelf wire mesh welding machine,numerical control wire mesh welding machine,commodity shelf nc mesh welding machine |

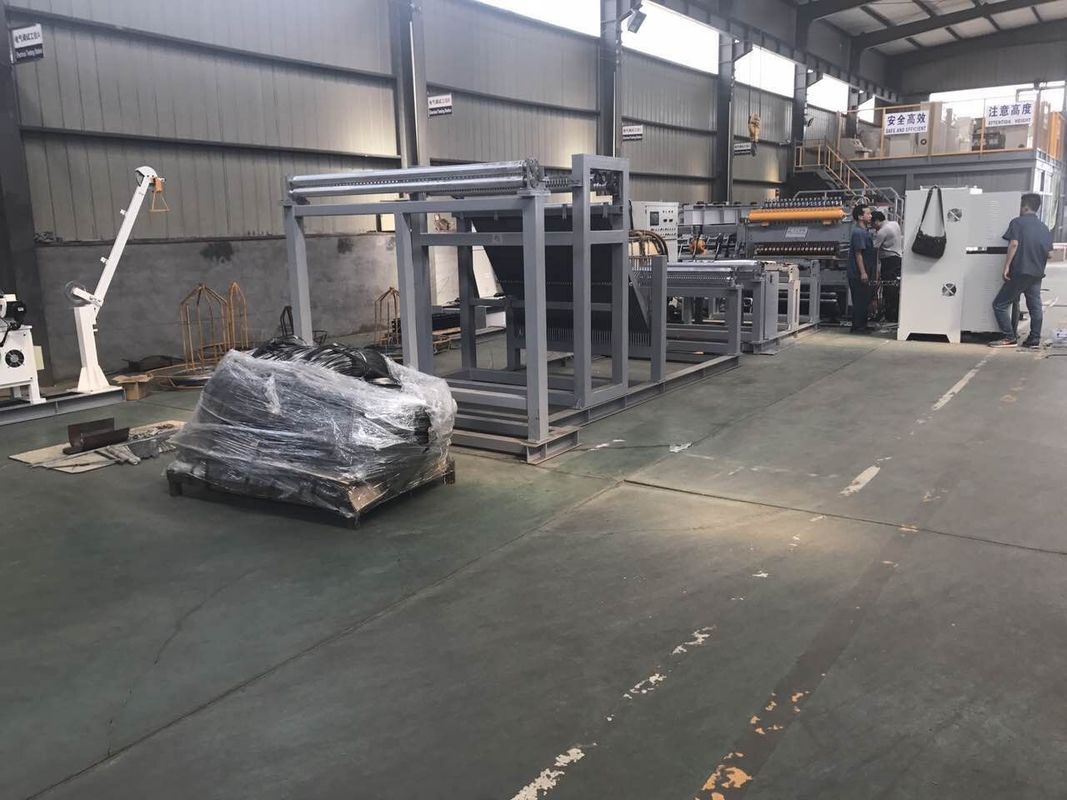

Numerical Control Commodity Shelf Wire Mesh Welding Machine
The dragnet mechanism is composed of a linear slider rail and a dragnet trolley, which is powered by the servo motor and transforms the rotation into a straight line movement through the precision reducer and the gear rack mechanism.Each running distance is changed by adjusting the latitudinal lattice and its number, set according to the actual mesh.At the origin, when receiving the operation signal, first, the pull mesh hook is lifted, any clamp cylinder clamp, the mesh positioning after the mesh, stop the wire welding, the welding is completed, until the whole mesh welding is completed.When the mesh is in 3 meters state, the mesh will be pulled out to the end direction after the welding. After releasing the clamp, the mesh hook drops, the car returns to the origin, and then the second mesh will be welded.When the cylinder is in reciprocating or long mesh state, when the welding reaches the rear return point, the welding cylinder will not be lifted, directly release the clamp cylinder, and then pull the net cylinder drops, the car returns, when the car returns to the origin and start twice, did not complete the welding network welding.
Item | Name | QTY | Unit |
1 | Welding machine | 1 | SET |
2 | Welding Control System | 1 | SET |
3 | Servo Control System | 1 | SET |
4 | Servo stepping device | 1 | SET |
5 | Cross Wire Auto-Feeding System | 1 | SET |
6 | Long wire loading frame | 1 | SET |
7 | Mesh traction platform | 1 | SET |
8 | Long wire feeding car device | 1 | SET |
9 | Automatically stacking device | 1 | SET |
10 | Mesh transportation car | 1 | SET |
11 | spare part case | 1 | PCS |
12 | Equipment operation and maintenance manual | 1 | COPY |
Numerical Control Commodity Shelf Wire Mesh Welding Machine
If the machine is not in use for a long period of time, the main power supply should be cut off to ensure safety, cut off the supply of air and water, do anti-rust treatment on the machine, apply anti-rust oil, remove dirt on the upper and lower electrode blocks, keep it clean, apply proper amount of lubricating oil on the mechanical transmission parts such as gears, sprockets, etc., blow off the dust of the fuselage and cover it with plastic film.
Gas supply equipment or water pump should also do corresponding maintenance.
Keep the machine storage place clean, non-corrosive liquid, water, no dangerous goods storage.
